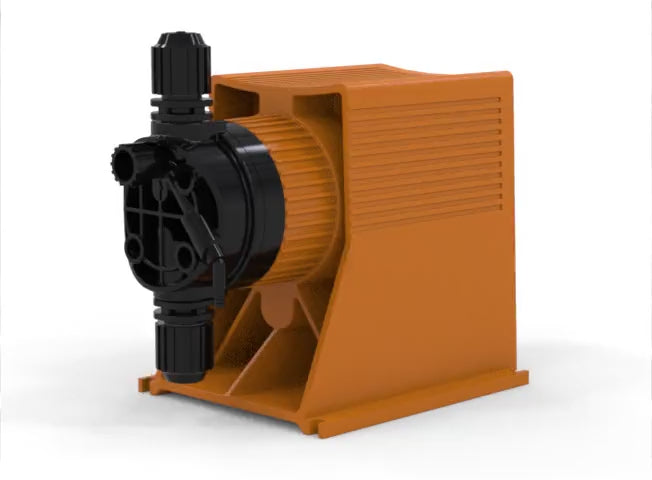

DescriptionIt is a positive displacement diaphragm metering pump operating at 230V, 50Hz supply. It is base mountable.Solenoid pushes the diaphragm which in turn pushes the liquid into the system. Solenoid is actuated by a solid state electronic circuit. It has controls for the desire accuracy of the dosing.Diaphragm:Superior diaphragm is designed to ensure to long life even under the most demanding applications. We are using imported quality Solid PTFE diaphragm.Electronic Circuit:State of the art electronic circuit (protectively coated with epoxy) is virtually unaffected by temperature,magnetic fields & other electric disturbances.MOC:• PP, PVDF, PTFE & SS316, Alloy20Salient features:Maintenance freeEasy to operateEconomicalWorld class next generation Dosing PumpsInbuilt Air Relief ValveSolid PTFE DiaphragmDouble NRV Check ValvesLess noiseMinimum SPMOptionally Digital display of SPM availableSolenoid:High quality, hot rated solenoid is designed to dissipate heat. Capacities & pressure do not derate even over extended use.Technical specification:1. Power Supply 230v AC, 50Hz2. Power consumption at max. speed 40 Watt3. Fuse 500mA / 230v Ac4. Pump stroke per minute {adjustable} 120 Max5. Negative Suction 1 Mtr6. environment temperature 40’C Max7. Capacity Max 50 Lph8. Pressure Minimum 13 KgNoTechnical SpecificationCapacity1.Power Supply230v AC, 50Hz2.Power consumption at max. speed40 Watt3.Fuse500mA / 230v Ac4.Pump stroke per minute {adjustable}120 Max5.Negative Suction1 Mtr6.Environment Temperature40’C Max7.Capacity Max50 Lph8.Pressure Max17 Kg
Model: VE 01
Capacity: 6 lph
Pressure: 4 kg/cm2
Type: Solenoid operated electronic dosing pump
Input Power Supply: 230v, 50hz, 1 Phase
Input Power Consumption: 40 watt
Flow Adjustment: By Manual adjustable Speed SPM 0-100
Negative Suction: 1 meter
End Connection: 3/8" hose holde
Environment Temperature: 45 Deg. Celcius Max.
Temperature of Liquid Handled: 50 Deg. Celcius Max.
In the Box: Suction and Discharge TubingFoot Valve cum StrainerAntisyphoning Valve
Warranty: one year against manufacturing defects
