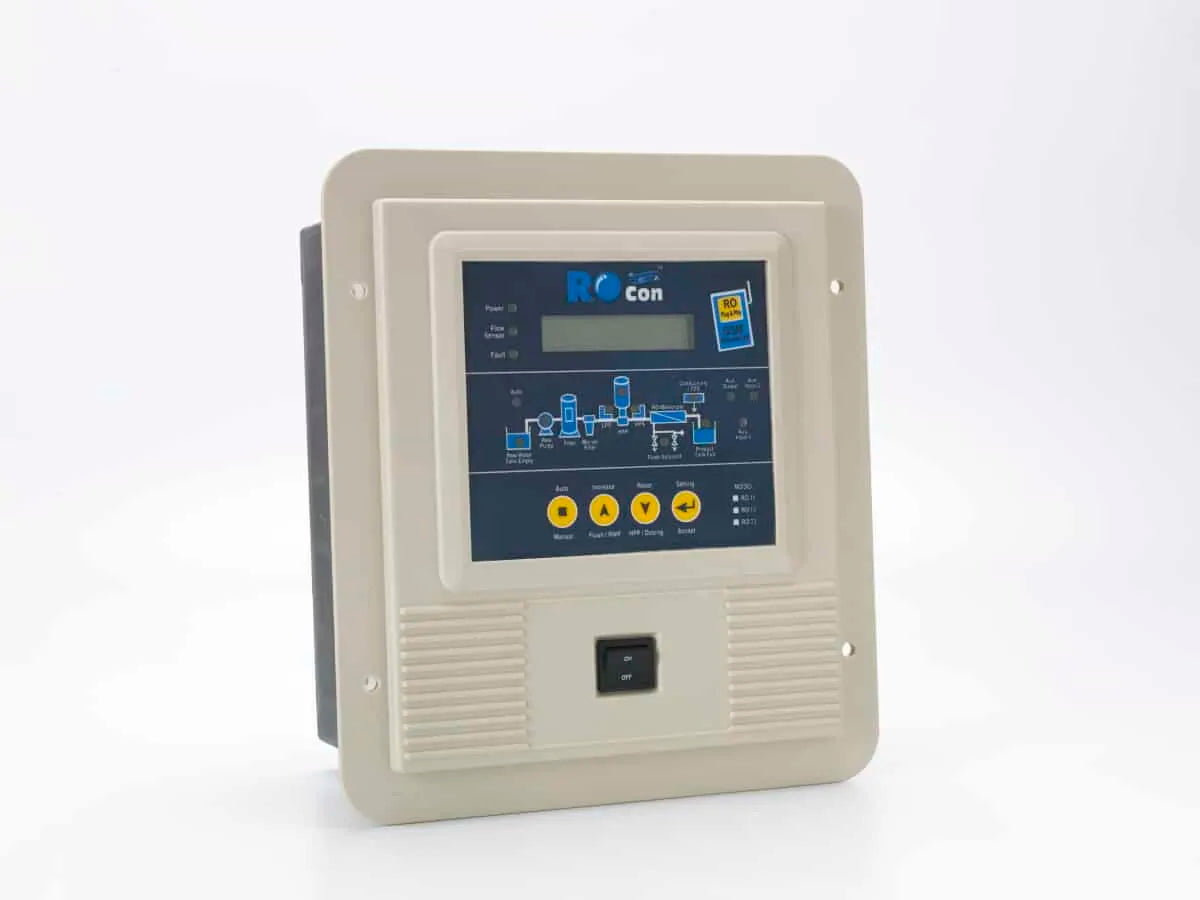

DescriptionRO CONTROL PANELRO Con panels are made with current sensing technology which provides auto fault detection for easy maintenance at site.KEY FEATURESMicrocontroller based software Technology.Complete RO logic pre-programmed.16X2 alphanumeric LCD with mimic diagram and 15LED for front stickers.4 Dome key based easy programming for more than 20 parameters.Five registered user can be added.Password protection.Android application based operation.All parameter and timer setting.Real time SMS alert for all events.FeaturesCurrent range from 1-25 AmpsTwo float switches for Raw water tank & Product water tankSupply for up to 2 HP for RWP and HPPProtection from dry run, overload, low voltage & high voltage for RWP and HPPPanel inputs from LPS, HPS ,2 Float switch, conductivity, 2 flow sensorsPanel outputs to RWP, HPP , Dosing pump, flushing solenoid valve, Auxiliary outputProtection against extreme high currentMicrocontroller based digital product with high reliability and long lifeCan be configured for Auto Mpv’sCompact, vermin proof, rust proof, ABS design.Time Based Password ProtectionIn Panel Calibration Options For Voltage, Ampere and Conductivity.Following parameter can be set using GSM facility:RWP dry run & overload currentRWP dry run & overload trip time delayHPP dry run & overload currentHPP dry run & overload trip time delayHPP ON & OFF delayFlow constant of flow sensorHigh conductivity alarmConductivity trip timeFlush timeAuto flush ON & OFFAuto flush timeAuto flush delayReset flow meterParameters visible on Android applicationRWP currentHPP currentConductivity/ TDSTemperatureFlow1Flow2VoltageGSM %
Input Voltage (AC): 200-300 VAC 50Hz
Current Supply range: 1-25 Amps
Overload: 1-25A wide range, default 4A for RWP and HPP
High voltage: 230-280 V, default 250V
Low voltage: 150-200 V, default 150V
Dry run/ No load current: 1-16A wide range, default OFF HPP and RWP
RWP dry run trip time delay: 01-180 sec range, default 180 sec
RWP overload trip time delay: 01-30 sec range, default 15 sec
HPP dry run trip time delay: 01-180 sec range, default 180 sec
HPP overload trip time delay: 01-30 sec range, default 15 sec
HPP operation ON timer: 1-99 sec , default 15 sec
HPP operation OFF timer: 01-99 sec , default 15 sec
Dry run auto-start timer for RWP: 05-720 min, default OFF
Auto flushing valve on time: 05-100 sec, default 15 sec
Conductivity ignore time: 01-60 min, default 2 min
Power on timer: 01-300 sec range, default 60 sec
GSM log interval for android app: 01-720 min, default 60 min
