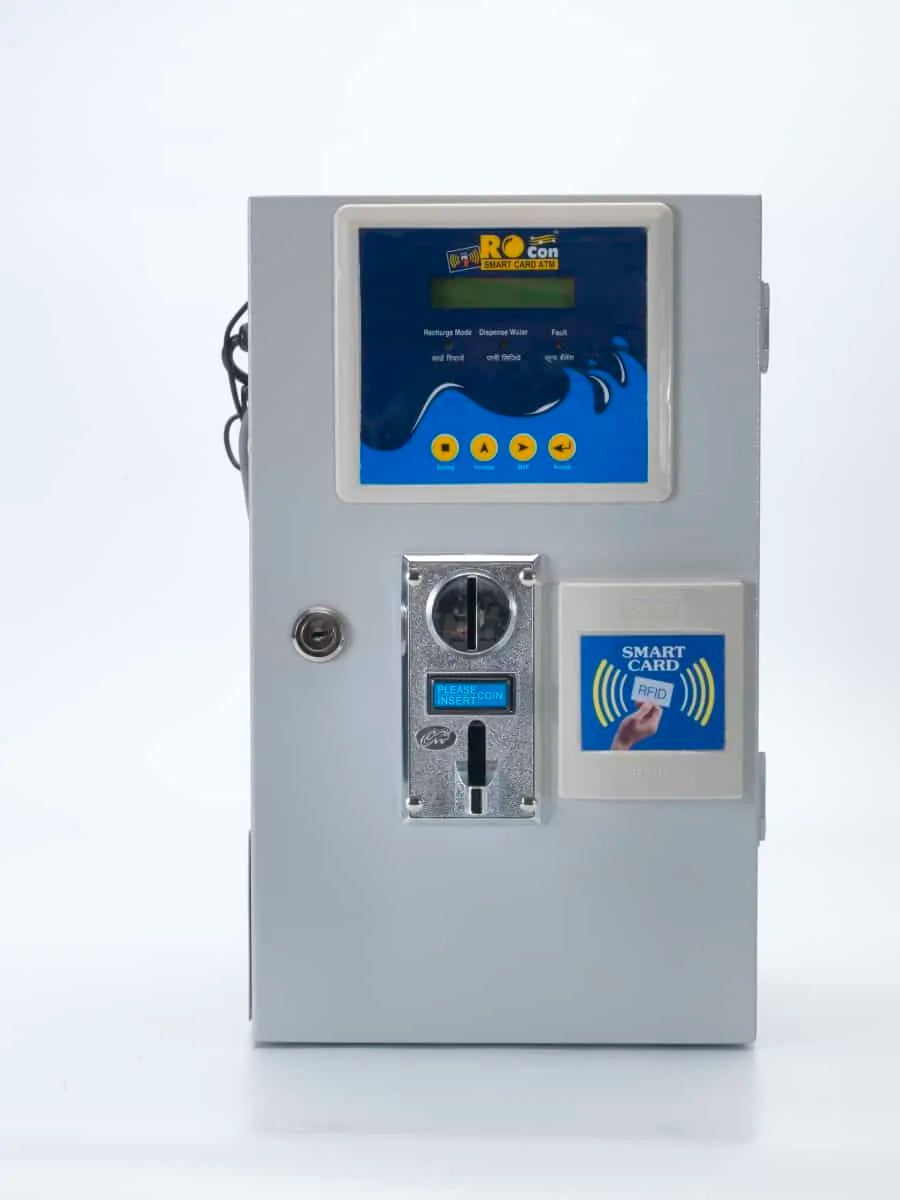

DescriptionWATER ATMWater ATM Machines, which are used for mineral water vending at railway stations and bus stations.COIN +SMART CARD WATER ATMSmart card + Coin based operating machine.Smart card authentication No. for individual user.Multi coin mechanism accepts coins rs.1/2/5/10.In built card recharge facility.Customer wise card recharge data & balance.Programming password for admin & operator separately.Timer or volume based dispensing.Total revenue report on unit & GSM data loggingMulti parameter display.Total connection reports on unit.Water level monitoring- stops machine during low water level.Optional battery backup.Read write facility for unit code, balance rupees.Microcontroller based digital product with high reliability and long life.Facility to connect GSM data logger.KEY FEATURESMicrocontroller based software Technology.16X2 alphanumeric LCD with mimic diagram and 15LED for front stickers.4 Dome key based easy programming for more than 20 parameters.Four registered users can be added.Password protection.SMS based Android application operation.Real time SMS alert for all events.GSM FACILITY FOR Water ATM:Parameters visible on Android applicationTotal number of card swapped.Total amount in Rs.Total no of cards recharge.Total card recharge amount.Total water dispense in liters.GSM%Add location name.Last updated date and name.Number of coin inserted.Total coin amount in Rs.

Input Supply: 200V-300V,50Hz supply
Operating Based on: Coin + Smart card
GSM Enabled: Yes
Android Application: YES
Smart card Accepted: RFID cards
Flow sensor: 3/4th inch
Solenoid valve: 3/4th inch
Volume Dispense: 200 ml to 20 Litres
In the Box (supply along with the water ATM): 5 Nos. RFID water ATM cards.
Coins Accepted: 1,2,5 & 10
