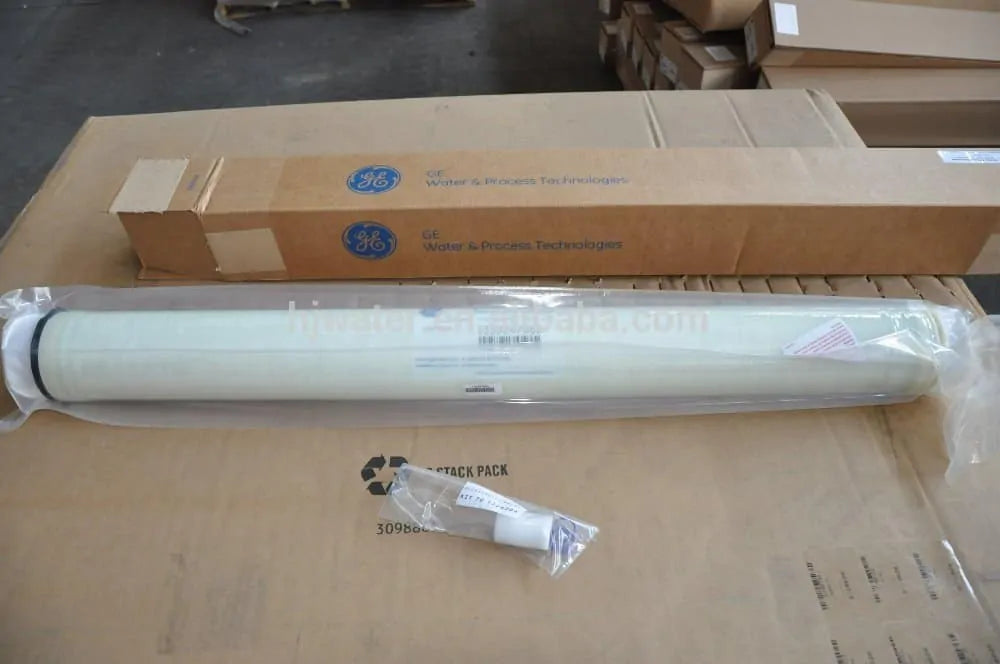

DescriptionAG Series (SUEZ Water – RO Membrane) – VeoliaSUEZ spiral wound membrane elements purify water for drinking water, boiler feedwater, seawater desalination, rinse water, and water reuse.These highly efficient membranes produce high-quality product water from virtually any source including surface water, tap water, well water or seawater.Benefits and Featuresreduce salinity and chemical oxygen demand (COD)remove chemical contaminantsrecover acid streams.clean-up hot condensatespre-concentrate streams prior to evaporatorreduce energy requirementsreduce wastewater volumes by increasing water reuselower operating costsreduced equipment downtimeSUEZ custom designs membrane elements to operate effectively in challenging environments,including extreme pHs, temperatures from 40° to 180° Fahrenheit (5° to 80° Celsius), oil contaminated streams and highly viscous solutions.Membrane Feed Waterbrackish watertap (mains) waterTypical Applicationsreverse osmosispotable waterpure waterprocess waterfood and beveragechemical processingmetal finishingelectronicsNote> GE Water has been acquired by SUEZ Water Technologies and now GE Membranes are Branded as SUEZ Membranes.SUEZ Water Technologies has been acquired byVeoliaand now SUEZ Membranes are Branded asVeoliaMembranes.

Membrane Type: Thin-Film Nanocomposite(TFN)
Maximum Operating Temperature: 50ºC (122ºF)
Maximum Operating Pressure: 600 psi (41 bar)
Maximum Feed Flow Rate 4040 Elements: 16 gpm (3.6 m3/h)
Maximum Pressure Drop: 12 psig (0.82 bar)
pH Range, Continuous Operation: 2 - 11
Maximum Feed Silt Density Index (SDI): SDI 5
Free Chlorine Tolerance: < 0.1 ppm
SaltRejection %: 99.5 %
Max. Feed water turbidity: 1.0 NTU
Flow ratem3/d (GPD): 9.5 (2,500)
